Flood Prevention
SDS Weholite Systems For Jointing
Jointing for all Weholite pipe- and panel- based systems.
SDS Weholite Pipeline System
Flood Prevention
HDPE pipeline conveyance and distribution system.
Key Benefits
Thermoplastic structured wall.
Possesses superior physical, hydraulic and mechanical properties.
Manufactured in sizes from 400mm internal diameter to 3.5 metres.
Weholite pipes are one of the few polyethylene pipes in the world that can be produced in dimensions larger than two metres.
One-piece lengths from 300mm to 30m
All projects are designed to optimise pipe length.
Fusion-welded and sand-tight mechanical joints.
Provide 120 years’ design life underground and 60 years’ above ground.
Weholite Pipes
Weholite is spirally wound pipe or flat panel, manufactured from corrosion-resistant HDPE, to provide a light weight, engineered solution with superior loading capacity that is chemically inert and provides a projected 120-year design life.
Weholite pipeline products are used in a wide variety of applications including drainage and sewer networks, stormwater attenuation tanks and soakaways, flood relief culverts and CSO flood alleviation schemes. Designed for both online and offline situations, these products have been utilised by most of the major developers and adopted by all of the UK Water Companies.
Weholite pipeline products are also used in the Water Industry Capital Investment Programme (AMP) for water management infrastructure, and on major surface water drainage projects including highways development and repair, Network Rail improvements, Schools Building Programme, Energy from Waste projects and CSO flood alleviation for properties on the DG5 register.

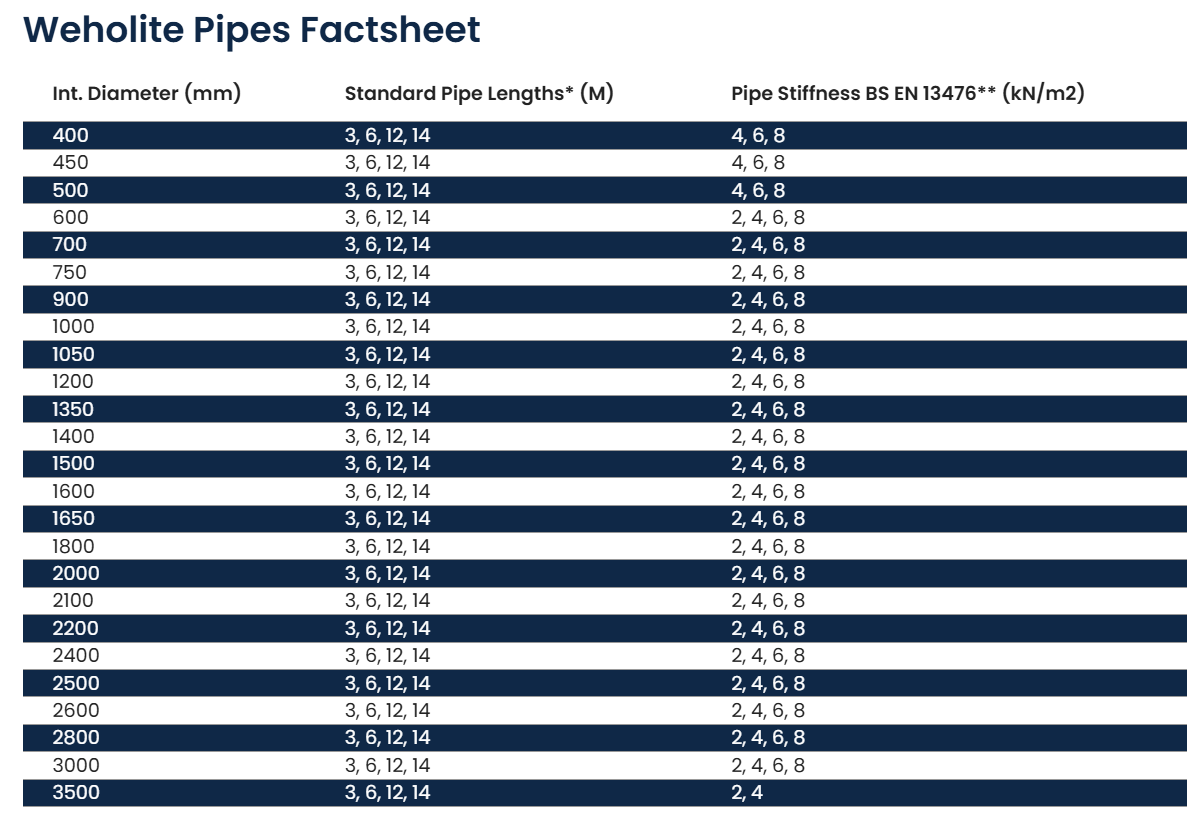

Weholite Pipes Factsheet
* The uniqueness of the Weholite production process means that pipes can be run in any length from 300mm to 30m in one piece. All projects are designed to optimise pipe length to ensure efficient installation and value engineering.
** Pipe stiffnesses above 8 and special designations in between the sizes above are available by special request.
All dimensions are subject to change.
Features and Benefits
Flexible, durable and reliable
Capable of withstanding extreme temperature ranges and fully functional in difficult conditions including gravity and low-pressure applications.
Meets latest EU regulations.
Fully compliant with BS EN 13476: 2007 (Part 1-3) Plastic Piping Systems for Non-Pressure Underground Drainage and Sewerage.
Light weight.
Enables superfast installation.
Resistant to impact, abrasion, corrosion, H2S, UV- and environmental deterioration.
Can be used in harsh conditions and difficult locations.
Pipe bores available from 400mm internal dia to 3.5 metres.
Provides the largest range of thermoplastic structured wall pipes available.
Fusion-welded and sand-tight mechanical joints.
Ensure a 120-year design life (60 years above ground).
Suitable for connecting with a wide variety of jointing systems.
Meets any specific project requirements.
Available in one-piece lengths from 300mm to 30m.
Suitable for most installations.
DWF channel with anti-slip flooring available.
Ensures safe movement within the pipe.
Environmentally friendly production.
Non-toxic with a lower carbon footprint.
Industry Compliance and Accreditation
Weholite products meet, comply with and often exceed the applicable standards required by industry.
Weholite products are manufactured and certificated to meet the material and performance requirements of BS EN 13476: 2007 (Part 1-3) Plastic Piping Systems for Non-Pressure Underground Drainage and Sewerage.
Weholite piping is WRAS-approved; Weholite is “Approved for Use in Public Water Supplies” under DWI Regulation 31 reference nos. DWI 56.4.513a and DWI 56.4.513b.
Weholite piping, including welded joints, in diameter from 900mm to 3500mm meet the requirements set out in WRc Assessment Schedule PT/412/1117-AS and are certified by WRc.
Weholite systems, including any welded joints, are certified by Kitemark. Licence no. KM 560128 covers the manufacture of Weholite pipes, fittings and joints from DN400 to DN3000 diameter.
Weholite pipe systems from 450mm to 3500mm internal diameter are approved for use by Highways Authorities in England, Wales, Scotland and Northern Ireland as drainage structures (open ended and offline/online attenuation structures for surface and fluvial water).
Copies of the BBA HAPAS Certificates can be downloaded below:
Information Download
Product FAQs
Real World Impact
Flood Prevention
Environment Protection
Meadowhead, Ayshire
Weholite attenuation system improves the quality of local rivers’ bathing water.
View Case Study
Flood Prevention
Friars Walk, Newport
Weholite piping upgrades redeveloped Shopping Centre’s drainage system.
View Case Study
Flood Prevention
Environment Protection
Hookstone Road, Harrogate
Weholite devices protect the local environment from CSO spills.
View Case Study
More Products
Flood Prevention
SDS GEOlight® Tank
Geocellular crate-based surface water storage, attenuation and infiltration system.
Environment Protection
SDS Weholite CSO Control Chamber
HDPE pipe- and panel-based pre-fabricated CSO system.
Flood Prevention
SDS Weholite Manhole
HDPE pipe- and panel- based manhole chamber and access shaft.
Flood Prevention
SDS Weholite Pumping Station
HDPE pipe- and panel- based surface water and wastewater pumping system.
Flood Prevention
SDS Weholite Flow Control
HDPE pipe- and panel- based surface- and waste- water flow control chamber.
Flood Prevention
SDS Weholite Attenuation Tank
HDPE pipe- and panel- based surface- and waste- water attenuation and drinking water storage system.
